金刚石微粉表面的纳米硅烷化改性及其抗氧化性能

庞爱红 董欣然 董俊言 沈方韧 谭素玲 贾晨超 董书山 毛青青 吴增凤

庞爱红, 董欣然, 董俊言, 沈方韧, 谭素玲, 贾晨超, 董书山, 毛青青, 吴增凤. 金刚石微粉表面的纳米硅烷化改性及其抗氧化性能[J]. 金刚石与磨料磨具工程, 2022, 42(4): 410-420. doi: 10.13394/j.cnki.jgszz.2022.0100
引用本文: 庞爱红, 董欣然, 董俊言, 沈方韧, 谭素玲, 贾晨超, 董书山, 毛青青, 吴增凤. 金刚石微粉表面的纳米硅烷化改性及其抗氧化性能[J]. 金刚石与磨料磨具工程, 2022, 42(4): 410-420. doi: 10.13394/j.cnki.jgszz.2022.0100
PANG Aihong, DONG Xinran, DONG Junyan, SHEN Fangren, TAN Suling, JIA Chenchao, DONG Shushan, MAO Qingqing, WU Zengfeng. Nano silylation modification of diamond powder surface and its oxidation resistance[J]. Diamond & Abrasives Engineering, 2022, 42(4): 410-420. doi: 10.13394/j.cnki.jgszz.2022.0100
Citation: PANG Aihong, DONG Xinran, DONG Junyan, SHEN Fangren, TAN Suling, JIA Chenchao, DONG Shushan, MAO Qingqing, WU Zengfeng. Nano silylation modification of diamond powder surface and its oxidation resistance[J]. Diamond & Abrasives Engineering, 2022, 42(4): 410-420. doi: 10.13394/j.cnki.jgszz.2022.0100

金刚石微粉表面的纳米硅烷化改性及其抗氧化性能

doi: 10.13394/j.cnki.jgszz.2022.0100
详细信息
    作者简介:

    庞爱红,女,1973年生,助理工程师。主要研究方向:金刚石、金刚石微粉生产、加工、研发等。E-mail:holddiamond@163.com

    通讯作者:

    董书山,男,1966年生,副教授。主要研究方向:超硬功能材料、超硬制品用金属预合金粉末及高性能超硬制品。E-mail:dongss@jlu.edu.cn

  • 中图分类号: TQ164

Nano silylation modification of diamond powder surface and its oxidation resistance

  • 摘要: 采用溶胶−凝胶技术和正硅酸乙酯(TEOS)的水解−缩合反应,在金刚石微粉表面包覆一层厚度为2~10 nm的富含活性氧基团的纳米氧化硅非晶凝胶膜,凝胶膜在加热至一定温度后,其二氧化硅可由非晶相向晶体相转变。金刚石微粉在空气中的初始氧化温度从原料金刚石的500 ℃提升到其TEOS覆膜改性后的550 ℃。在TEOS覆膜中添加纳米硅粉改性后,金刚石微粉样品在空气中的初始氧化温度可进一步提升至610 ℃;且经过800 ℃的热处理后,样品剩余量比之原料金刚石量大幅度提升,表明TEOS覆膜中添加纳米硅粉后可进一步提升金刚石微粉的高温抗氧化性能。TEOS覆膜中富含的活性氧基团能与树脂/陶瓷结合剂间产生化学反应,有利于提高结合剂对金刚石的把持力,可为制备高性能的树脂/陶瓷结合剂金刚石工具提供良好的功能化改性原材料。

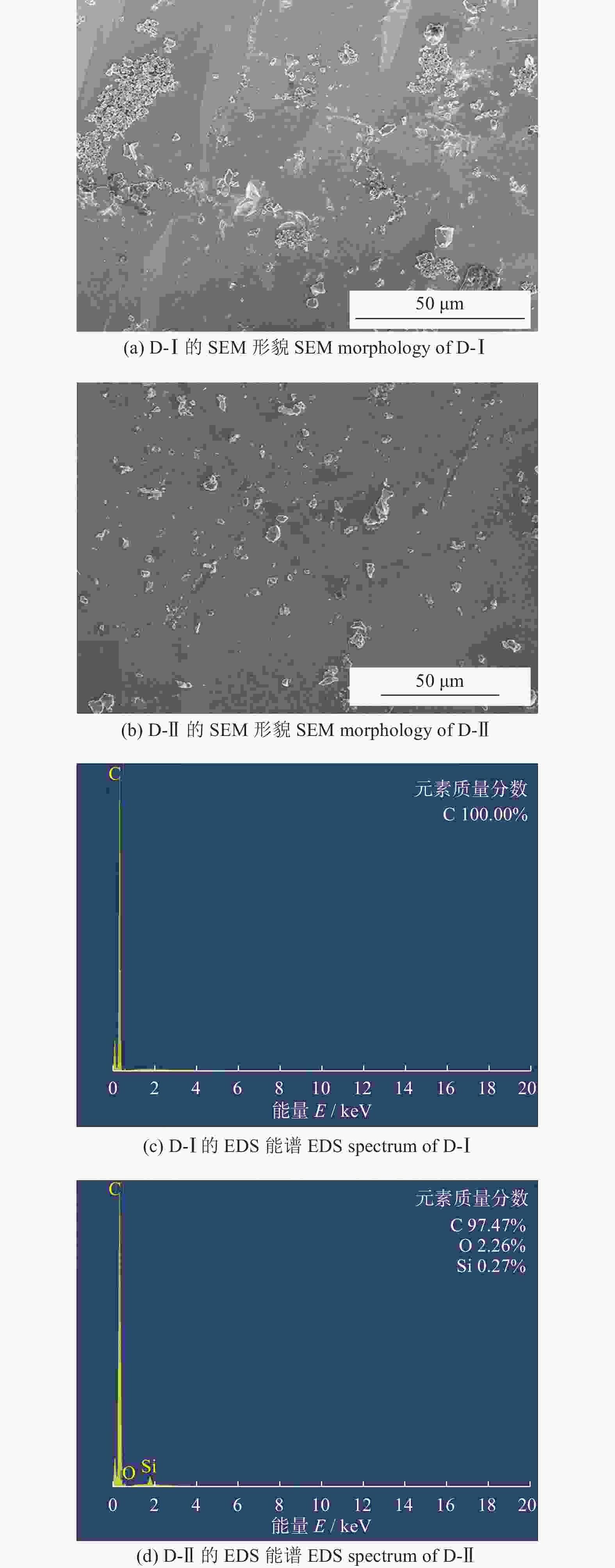

  • 图  1  分散处理后的D-Ⅰ和D-Ⅱ微粉SEM形貌及其表面EDS能谱

    Figure  1.  SEM morphologies and surface EDS spectra of dispersed D-Ⅰ and D-Ⅱ powders

    图  2  D-Ⅲ微粉表面SEM形貌及选区EDS能谱

    Figure  2.  SEM morphology and selected area EDS spectroscopy of D-Ⅲ micropowder surface

    图  3  D-Ⅰ和D-Ⅱ金刚石微粉的XRD图谱

    Figure  3.  XRD spectra of D-Ⅰ and D-Ⅱ diamond powders

    图  4  D-Ⅲ金刚石微粉和纳米硅粉的XRD图谱

    Figure  4.  XRD spectrum of D-Ⅲdiamond powers and nano-Si powders

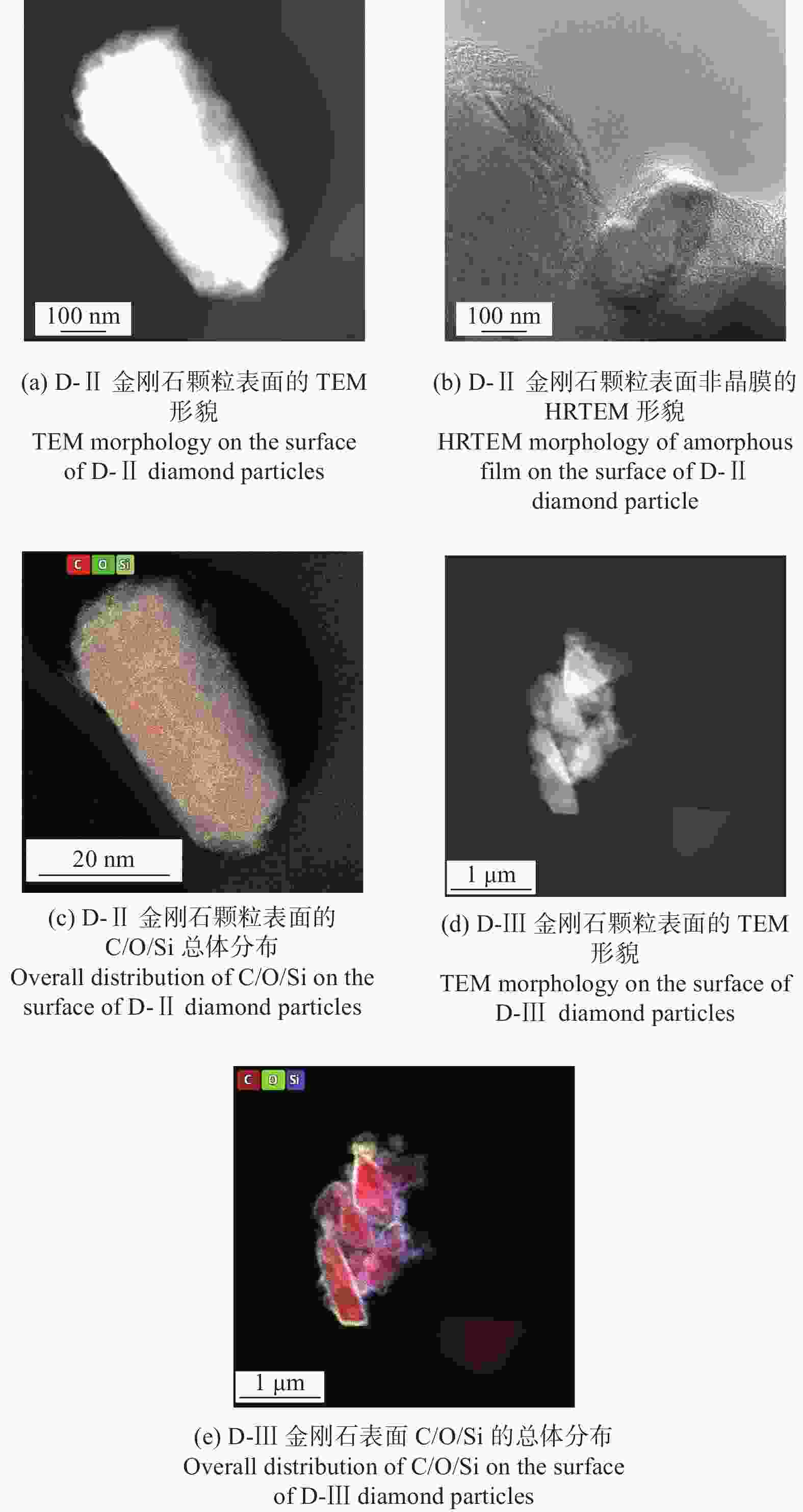

    图  5  D-Ⅱ及D-Ⅲ金刚石微粉的TEM、HRTEM及TEM能谱分析结果

    Figure  5.  TEM, HRTEM and TEM energy spectrum analysis results of D-Ⅱ and D-Ⅲ diamond powders

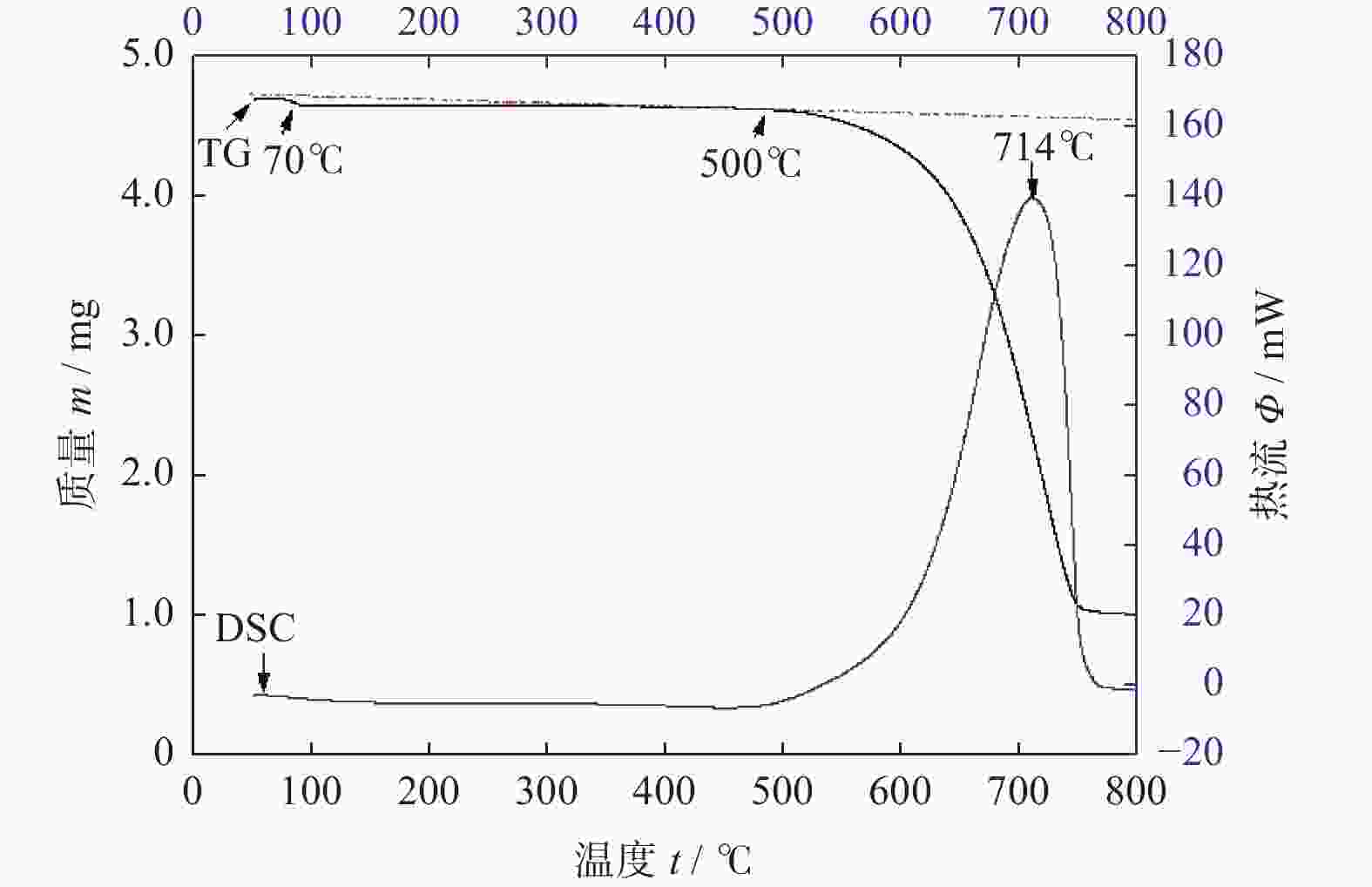

    图  6  D-Ⅰ金刚石微粉的TG及DSC测试结果

    Figure  6.  TG and DSC results of D-Ⅰ diamond powders

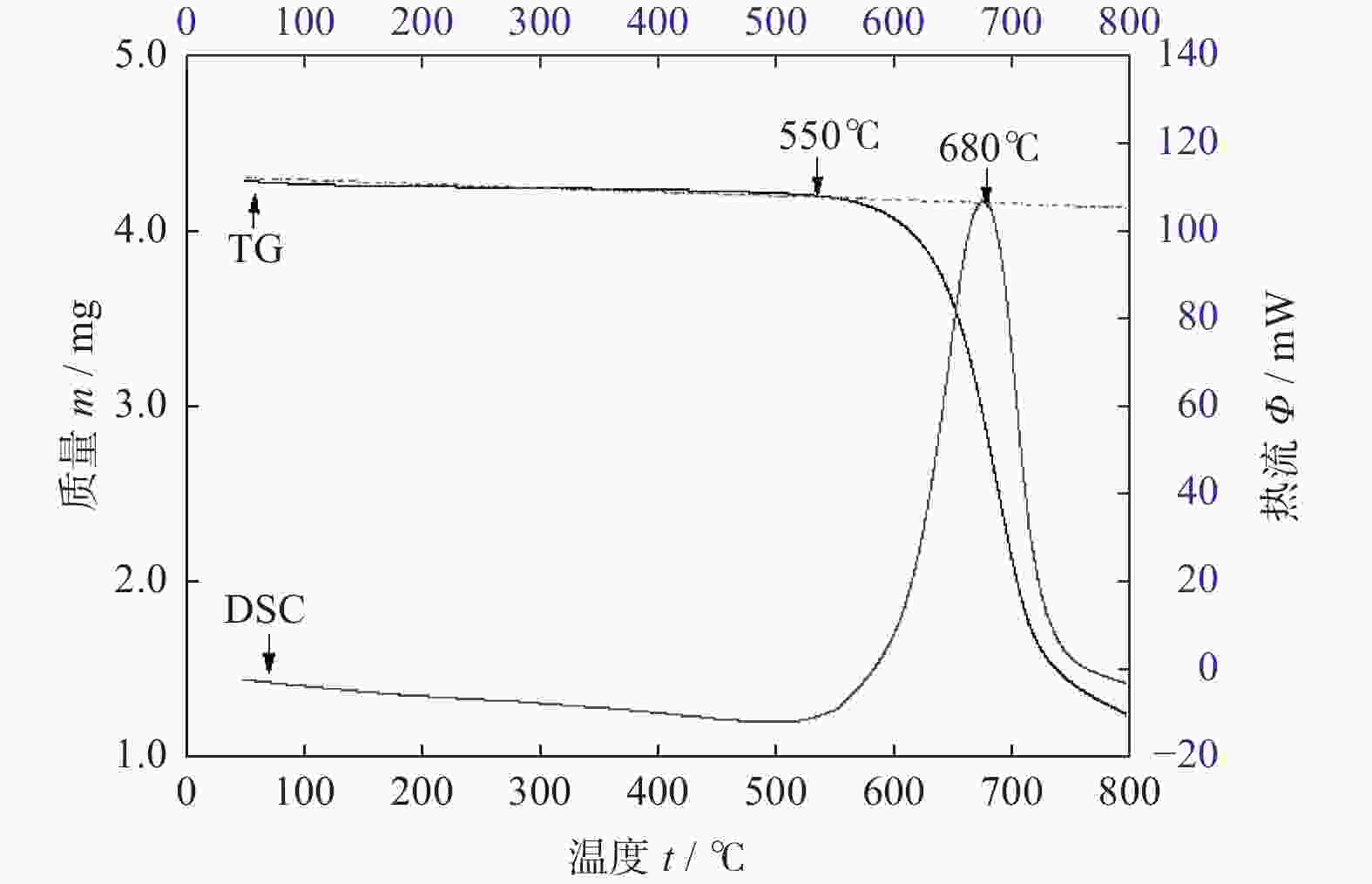

    图  7  D-Ⅱ金刚石微粉的TG及DSC测试结果

    Figure  7.  TG and DSC results of D-Ⅱ diamond powders

    图  8  D-Ⅲ金刚石微粉的TG及DSC测试结果

    Figure  8.  TG and DSC results of D-Ⅲ diamond powders

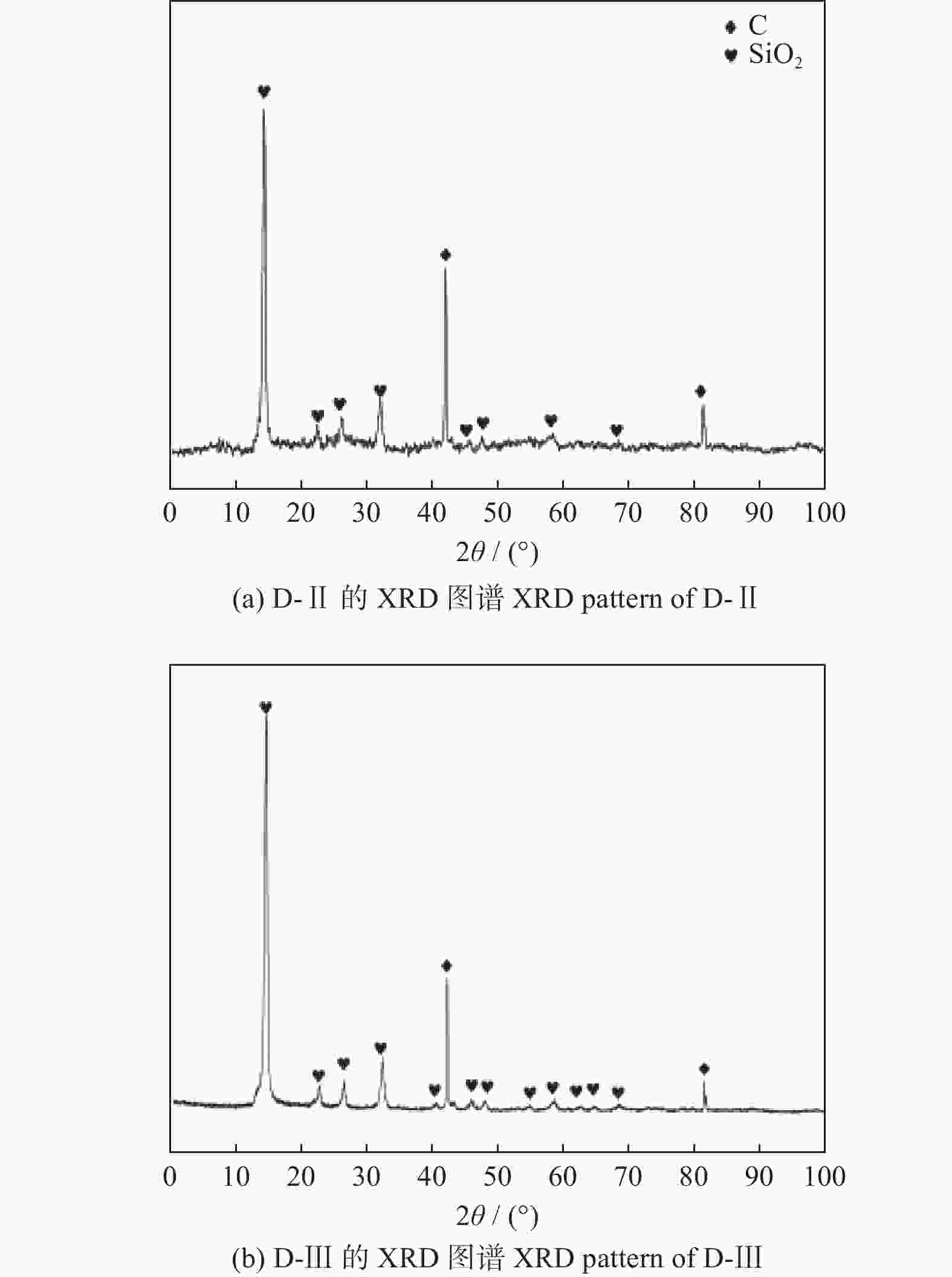

    图  9  差热分析后的D-Ⅱ及D-Ⅲ样品的XRD图谱

    Figure  9.  XRD patterns of D-Ⅱ and D-Ⅲ samples after differential thermal analysis

  • [1] LI Q Q, PENG Z B, CHEN Q W. The study of the vitrified diamond wheel [J]. Mining and Metallurgical Engineering,2007,27(1):75-77.
    [2] WANG S, LIU X, GENG B, et al. Development of metal bonded diamond abrasive tools [J]. Diamond & Abrasives Engineering,2006,4:71-75.
    [3] WANG Z, WAN L, WEIDA H U, et al. Effect of nickel on the properties of vitrified bond for diamond grinding tool [J]. Materials Review,2012,19(3):203-206.
    [4] 刘恒源, 徐三魁, 韩志静, 等. 金属/金刚石复合磨料在树脂磨具中的应用 [J]. 金刚石与磨料磨具工程,2021,41(2):59-63.

    LIU Hengyuan, XU Sankui, HAN Zhijing, et al. Application of metal/diamond composite abrasive in resin abrasive tools [J]. Diamond & Abrasives Engineering,2021,41(2):59-63.
    [5] 陈哲, 陈春晖, 刘一波, 等. 树脂结合剂金刚石堆积磨料砂轮磨削YG8硬质合金 [J]. 金刚石与磨料磨具工程,2020,40(6):25-30.

    CHEN Zhe, CHEN Chunhui, LIU Yibo, et al. Grinding YG8 cemented carbide with resin bond grinding wheels made of diamond agglomerate abrasive [J]. Diamond & Abrasives Engineering,2020,40(6):25-30.
    [6] 荆运洁, 王秦生. 金刚石热稳定性与颗粒形状的关系探讨 [J]. 金刚石与磨料磨具工程,1996(2):2-4. doi: 10.13394/j.cnki.jgszz.1996.02.001

    JING Yunjie, WANG Qinsheng. Relationship discussion between thermal stability and particle shape of diamond [J]. Diamond & Abrasives Engineering,1996(2):2-4. doi: 10.13394/j.cnki.jgszz.1996.02.001
    [7] 霍喜平, 何远航, 宋媛媛. 人造金刚石热稳定性的实验研究 [J]. 中国矿业,2002,11(4):62-63. doi: 10.3969/j.issn.1004-4051.2002.04.020

    HUO Xiping, HE Yuanhang, SONG Yuanyuan. Experimental research of thermal stability of artificial diamond [J]. China Mining Magazine,2002,11(4):62-63. doi: 10.3969/j.issn.1004-4051.2002.04.020
    [8] WANG B F, WANG S Y, TANG Z. Mechanism of the effect of adhesive Co on the thermal stability of polycrystalline diamond compact [J]. Mining and Metallurgical Engineering,2009,29(5):90-93.
    [9] 窦志强, 肖长江, 栗正新. 金刚石微粉表面镀覆技术研究进展 [J]. 电镀与精饰,2017,39(10):23-27. doi: 10.3969/j.issn.1001-3849.2017.10.005

    DOU Zhiqiang, XIAO Changjiang, LI Zhengxin. Research progress of plating technology on ultrafine diamond surface [J]. Plating and Finishing,2017,39(10):23-27. doi: 10.3969/j.issn.1001-3849.2017.10.005
    [10] XIANG D, LI M S, XU B. Research progress of techniques of coated diamond [J]. Superhard Material Engineering,2006,18(3):44-49.
    [11] 曾汉民, 安小宁. 一种纳米金刚石粒子表面处理方法: CN02115230.6 [P]. 2001-11-20.

    ZENG Hanmin, AN Xiaoning. A kind of method for surface treatment of nano diamond: CN021152330.6 [P]. 2001-11-20.
    [12] JOHN N A, BROWN J R. Flexural and interlaminar shear properties of glass-reinforced phenolic composites [J]. Composites Part A: Applied Science & Manufacturing,1998,29(8):939-946.
    [13] YAN P, WANG Y, WANG M, et al. Preparation and characterization of fibrous sepiolite modified silane coupling agent/fluororubber nanocomposite [J]. Polymer Composites,2015,38(s1):E208-E213.
    [14] CABRAL A M, TRABELSI W, SERRA R, et al. The corrosion resistance of hot dip galvanised steel and AA2024-T3 pre-treated with bis-[triethoxysilylpropyl] tetrasulfide solutions doped with Ce(NO3)3 [J]. Corrosion Science,2006,48(11):3740-3758. doi: 10.1016/j.corsci.2006.01.010
    [15] WAN L, SHI D, WANG J S, et al. Research on the surface modification of diamond with silane coupling agent [J]. Journal of Hunan University (Natural Science),2013,40(4):71-74.
    [16] YAN N, ZHAO D P, WANG L, et al. Preparation and sintering of silica-coated ultrafine diamonds–vitrified bond composite powders [J]. International Journal of Refractory Metals and Hard Materials,2014,43:212-215. doi: 10.1016/j.ijrmhm.2013.12.001
    [17] ZHAO D, WANG Z, XI Y, et al. Preparation of silica-coated ultrafine diamond and dispersion in ceramic matrix [J]. Materials Letters,2013,113:134-137. doi: 10.1016/j.matlet.2013.09.052
    [18] 林铭西. 人造金刚石生产工艺与理论 [M]. 桂林: 广西师范大学出版社, 1996.

    LIN Minxi. Production technology and theory of synthetic diamond [M]. Guilin: Guangxi Normal University Press, 1996.
    [19] 方啸虎. 人造金刚石立方氮化硼基础与标准 [M]. 北京: 化学工业出版社, 1993.

    FANG Xiaohu. Fundamentals and standards of synthetic diamond and cubic boron nitride [M]. Beijing: Chemistry Industry Press, 1993.
    [20] 樊建民, 王汝菊, 商玉生. 动高压法合成金刚石微粉的抗氧化性能的研究 [J]. 物理,1983(1):29-30.

    FAN Jianmin, WANG Ruju, SHANG Yusheng. Study on oxidation resistance of diamond powder synthesized by dynamic high pressure method [J]. Physics,1983(1):29-30.
    [21] 陈静, 万隆, 时丹, 等. 表面活性剂对金刚石在树脂中悬浮性及与树脂结合性的影响 [J]. 复合材料学报,2014,31(6):1416-1421.

    CHEN Jing, WAN Long, SHI Dan, et al. Effects of surfactant on suspension property of diamond in resin and associativity between diamond and resin [J]. Acta Materiae Compositae Sinica,2014,31(6):1416-1421.
    [22] KOZERSKI G E, GALLAVAN R H, ZIEMELIS M J. Investigation of trialkoxysilane hydrolysis kinetics using liquid chromatography with inductively coupled plasma atomic emission spectrometric detection and non-linear regression modeling [J]. Analytica Chimica Acta,2003,489(1):103-114. doi: 10.1016/S0003-2670(03)00710-4
    [23] OKUMOTO S, FUJITA N, YAMABE S. Theoretical study of hydrolysis and condensation of silicon alkoxides [J]. Journal of Physical Chemistry A,1998,102(22):225-235.
    [24] DE G, KARMAKAR B, GANGULI D. Hydrolysis-condensation reactions of TEOS in the presence of acetic acid leading to the generation of glass-like silica microspheres in solution at room temperature [J]. Journal of Materials Chemistry,2000,10(10):2289-2293. doi: 10.1039/b003221m
    [25] JIAN L. The effect of catalysts on TEOS hydrolysis-condensation [J]. Journal of Inorganic Materials,1997,12(3):363-369.
    [26] YANG H, DING Z S, WANG Z H, et al. Kinetics of sol-gel process for tetraethyl orthosilicate [J]. Journal of the Chinese Ceramia Society,1989,17(3):204-209.
    [27] SUPROMPITUK W, RADPAKDEE T, PHOLDEE N, et al. Effects of TEOS precursor and reaction time on the synthesis of silica coated single-walled carbon nanotubes [J]. Materials Science Forum,2016,872:248-252. doi: 10.4028/www.scientific.net/MSF.872.248
